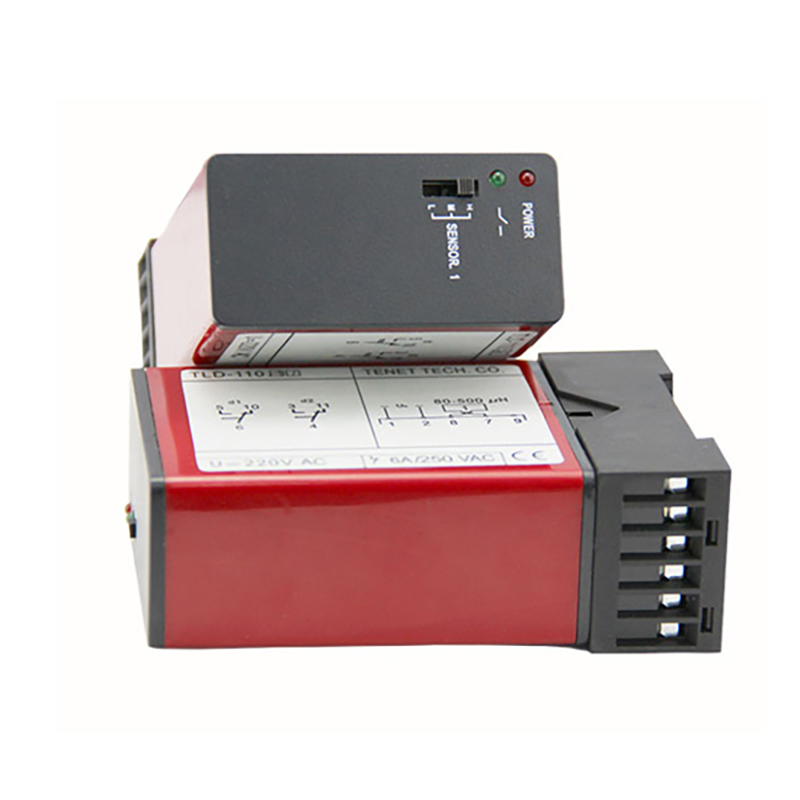

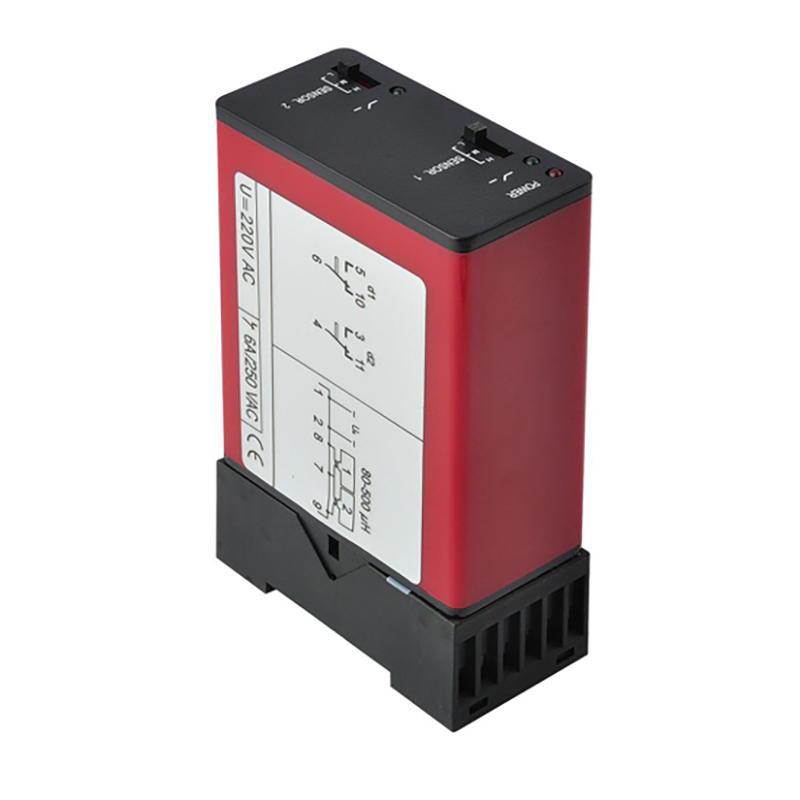

Double Channel Vehicle Loop Detectors


  • Output relays: 230V AC, 115V AC, 24V DC/AC, 12V DC/AC (See the label on the detector)
  • Reaction time: 100ms
  • Size of Housing: L78 x W40 x H108mm

Packing for Double Channel Vehicle Loop Detectors For Parking

Functions & Features

  1. 1. Compatible with the parking management system.
  2. Easy installation and operation.
  3. Connects one inductive loop (Double channel).
  4. Application for Parking lot entrances Vehicle detectors, Parking lot space information acquisition system, Electronic police traffic lights snapshot system, Traffic monitoring system, etc.
  5. Safe, beautiful, economic, comfortable.
Packing for Double Channel Vehicle Loop Detectors
Exquisite panel Using new technology development, compatible with all the gate sense, layout exquisite and meticulous.
Packing for Double Channel Vehicle Loop Detectors
Quality contacts Large-capacity and solid workmanship Better conductivity
Packing for Double Channel Vehicle Loop Detectors

Loop Detectors High-quality switch High, medium, and low sensitivity adjustable, easy to operate.

Packing for Double Channel Vehicle Loop Detectors
High-quality base Silk screen cleaning easy to identify, fast wiring The interface is clear

Vehicle Double Loop Detectors Specs:

  • Output relays: 230V AC, 115V AC, 24V DC/AC, 12V DC/AC (See the label on the detector)
  • Reaction time: 100ms
  • Size of Housing: L78 x W40 x H108mm

The PD-232 is a single channel inductive loop detectors. The principle is based on a change in the inductance within the loop which is caused by the metallic components of passing vehicles. The changes are picked up and evaluated by a microprocessor. Ease of use thanks to automatic calibration when the operating voltage is applied.

Supply voltage230V AC, 115V AC, 24V DC/AC, 12V DC/AC (See the label on the detector)
Loop Quantity2
Sensitivityadjustable in 4 increments (high .medium high. medium, low)
Operating temperature-20°C ~ 70°C
Storage temperature-40°C ~ 85°C
Frequency range20KHz ~ 170KHz
Reaction time100ms
Loop inductanceIdeal:80μH ~ 300μH

(incl. conn. wiring): max: 50μH ~ 500μH

Loop connection<5m optimal
Loop connection wiringMaximum length 200 meters
Twisted at least 20 times per meter
Dimensions78x40x108mm
Net Weight350g

Application Scope:

Parking lot entrance vehicle detection;

Parking lot space information acquisition system

Electronic police traffic lights snapshot system

Traffic monitoring system

Main Features:

The double coil model can realize vehicle driving direction detection

High-temperature stability

Cail automatic fault detection function

Can be used with barrier gates to realize anti hit a car function

Can be used with the barrier gates to realize cargo automatic switch-off function

Packing for Double Channel Vehicle Loop DetectorsPacking for Double Channel Vehicle Loop Detectors
Power supply
AC 230/110V ±10%
Frequency range
20KHz ~ 170KHz
Sensitivity
Adjustable in 3 increments
Reaction time
100ms
Channel
Two way
Operating temperature
-25ºC ~ 65ºC
Relative humidity
<90%(No condensation)
Coil inductance
recommend 100uH~300uH
Output mode
electric relay
Coil specification
Recommended not less than 1 * 2m
Size (including base)
74x37x113 mm (L x W x H)
